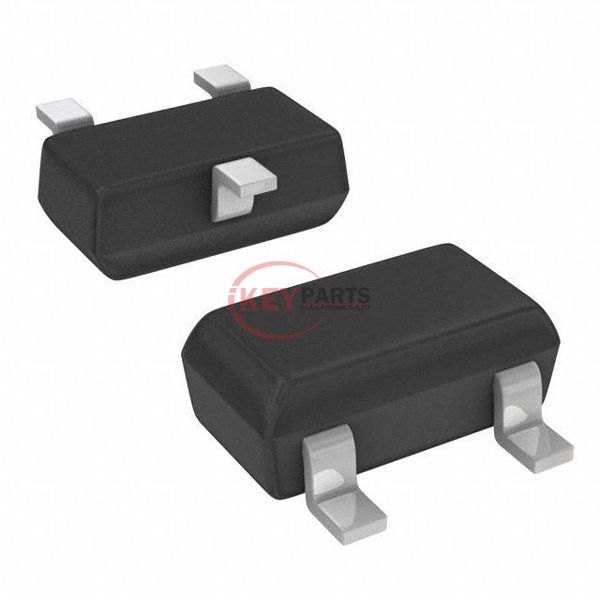

SSM3K301T(TE85L,F)

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation SSM3K301T(TE85L,F)

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
SSM3K301T(TE85L,F)
Description
MOSFET N-CH 20V 3.5A TSM
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SSM3K301T(TE85L,F) PDF
In Stock
400
SSM3K301T(TE85L,F) Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4V
Rds On (Max) @ Id, Vgs56mOhm @ 2A, 4V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs4.8 nC @ 4 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds320 pF @ 10 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTSM
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply SSM3K301T(TE85L,F), use the request quote form to request SSM3K301T(TE85L,F) pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SSM3K301T(TE85L,F). The price and lead time for SSM3K301T(TE85L,F) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SSM3K301T(TE85L,F). We look forward to working with you to establish long-term relations of cooperation.
