PHM15NQ20T,518

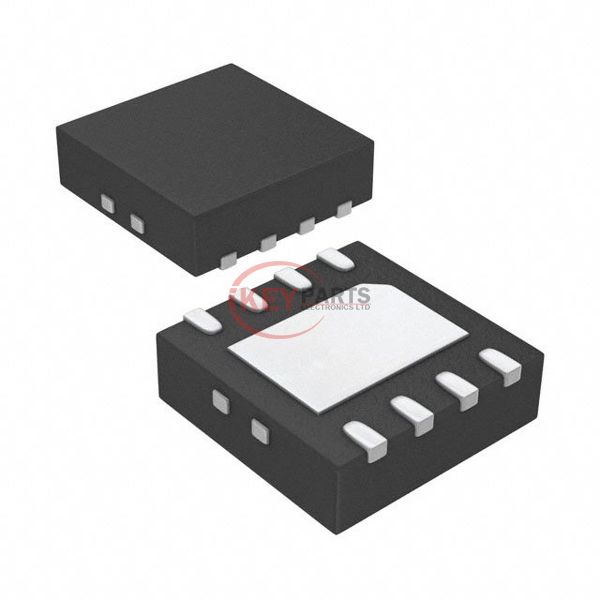

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PHM15NQ20T,518

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PHM15NQ20T,518
Description
MOSFET N-CH 200V 17.5A 8HVSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PHM15NQ20T,518 PDF
In Stock
884
PHM15NQ20T,518 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C17.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs85mOhm @ 15A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2170 pF @ 30 V
FET Feature-
Power Dissipation (Max)62.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HVSON (6x5)
Package / Case8-VDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PHM15NQ20T,518, use the request quote form to request PHM15NQ20T,518 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PHM15NQ20T,518. The price and lead time for PHM15NQ20T,518 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PHM15NQ20T,518. We look forward to working with you to establish long-term relations of cooperation.
