IXFH36N55Q2

Enlarger

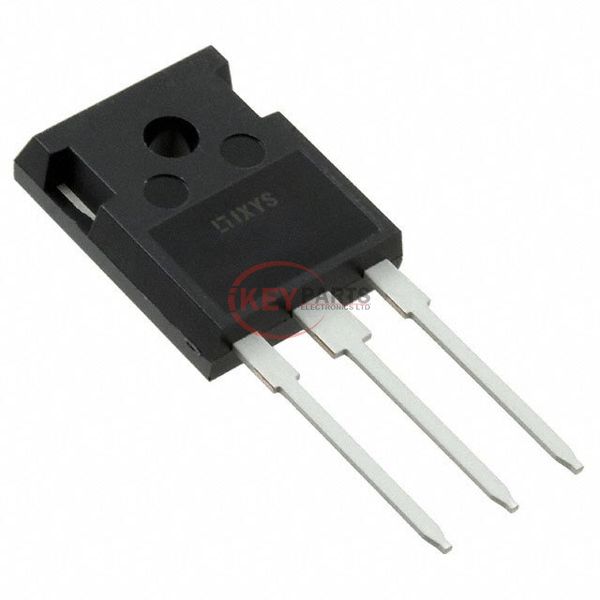

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXFH36N55Q2

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXFH36N55Q2
Description
MOSFET N-CH 550V 36A TO247AD
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXFH36N55Q2 PDF
In Stock
326
IXFH36N55Q2 Tech Specifications
SeriesHiPerFET™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)550 V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs180mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs110 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds4100 pF @ 25 V
FET Feature-
Power Dissipation (Max)560W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247AD (IXFH)
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IXFH36N55Q2, use the request quote form to request IXFH36N55Q2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXFH36N55Q2. The price and lead time for IXFH36N55Q2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXFH36N55Q2. We look forward to working with you to establish long-term relations of cooperation.
