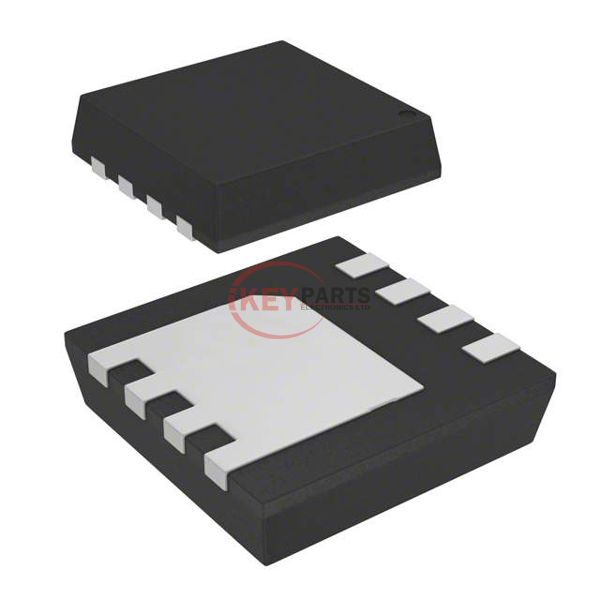

AON7784

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON7784

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON7784
Description
MOSFET N-CH 30V 31A/50A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON7784 PDF
In Stock
696
AON7784 Tech Specifications
SeriesSRFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C31A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs34 nC @ 10 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds4600 pF @ 15 V
FET FeatureSchottky Diode (Body)
Power Dissipation (Max)6.2W (Ta), 83W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3.3x3.3)
Package / Case8-PowerWDFN
Request Quote Now
Request Quote Now

We can supply AON7784, use the request quote form to request AON7784 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON7784. The price and lead time for AON7784 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON7784. We look forward to working with you to establish long-term relations of cooperation.
