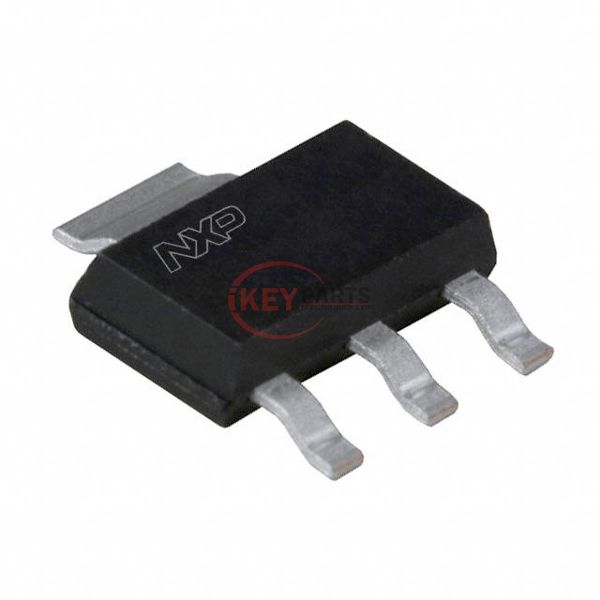

PHT8N06LT,135

Enlarger

Lmages are for reference only See Product Specitications

NXP Semiconductors PHT8N06LT,135

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PHT8N06LT,135
Description
MOSFET N-CH 55V 3.5A SOT223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PHT8N06LT,135 PDF
In Stock
608
PHT8N06LT,135 Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs80mOhm @ 5A, 5V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs11.2 nC @ 5 V
Vgs (Max)±13V
Input Capacitance (Ciss) (Max) @ Vds650 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.8W (Ta), 8.3W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Request Quote Now
Request Quote Now

We can supply PHT8N06LT,135, use the request quote form to request PHT8N06LT,135 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PHT8N06LT,135. The price and lead time for PHT8N06LT,135 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PHT8N06LT,135. We look forward to working with you to establish long-term relations of cooperation.
