2SK3546G0L

Enlarger

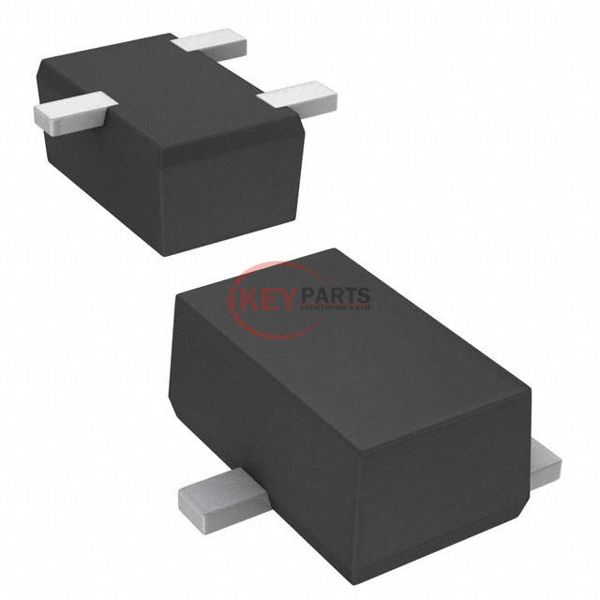

Lmages are for reference only See Product Specitications

Panasonic 2SK3546G0L

Manufacturer :
Panasonic
Mfr. Part # :
2SK3546G0L
Description
MOSFET N-CH 50V 100MA SMINI3-F2
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SK3546G0L PDF
In Stock
677
2SK3546G0L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4V
Rds On (Max) @ Id, Vgs12Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id1.5V @ 1µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±7V
Input Capacitance (Ciss) (Max) @ Vds12 pF @ 3 V
FET Feature-
Power Dissipation (Max)125mW (Ta)
Operating Temperature125°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSMini3-F2
Package / CaseSC-89, SOT-490
Request Quote Now
Request Quote Now

We can supply 2SK3546G0L, use the request quote form to request 2SK3546G0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SK3546G0L. The price and lead time for 2SK3546G0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SK3546G0L. We look forward to working with you to establish long-term relations of cooperation.
