IRLW630ATM

Enlarger

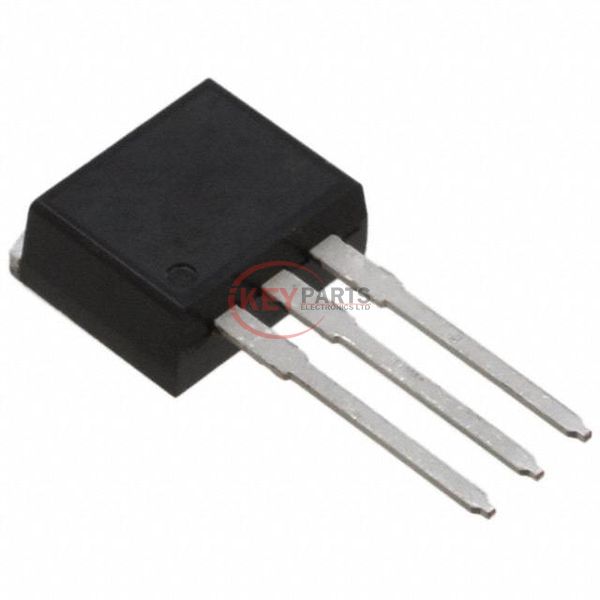

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor IRLW630ATM

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
IRLW630ATM
Description
MOSFET N-CH 200V 9A I2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLW630ATM PDF
In Stock
628
IRLW630ATM Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs400mOhm @ 4.5A, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs27 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds755 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.1W (Ta), 69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI2PAK (TO-262)
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IRLW630ATM, use the request quote form to request IRLW630ATM pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLW630ATM. The price and lead time for IRLW630ATM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLW630ATM. We look forward to working with you to establish long-term relations of cooperation.
