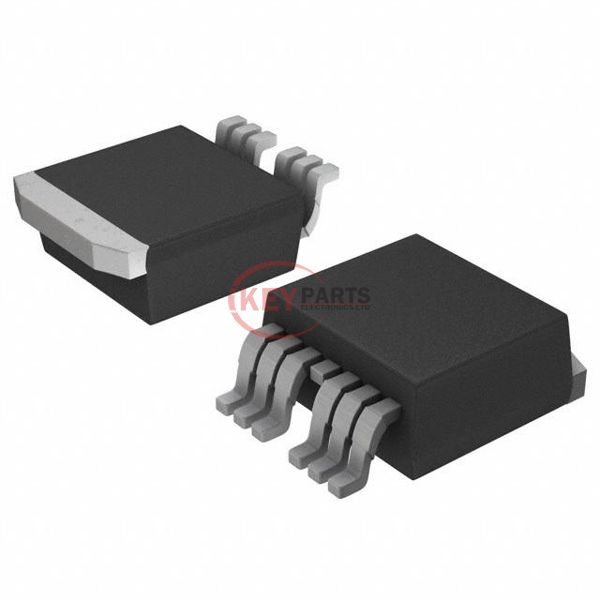

IRF1405ZSTRL-7P

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRF1405ZSTRL-7P

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRF1405ZSTRL-7P
Description
MOSFET N-CH 55V 120A D2PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRF1405ZSTRL-7P PDF
In Stock
399
IRF1405ZSTRL-7P Tech Specifications
SeriesHEXFET®
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.9mOhm @ 88A, 10V
Vgs(th) (Max) @ Id4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs230 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5360 pF @ 25 V
FET Feature-
Power Dissipation (Max)230W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK (7-Lead)
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
Request Quote Now
Request Quote Now

We can supply IRF1405ZSTRL-7P, use the request quote form to request IRF1405ZSTRL-7P pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRF1405ZSTRL-7P. The price and lead time for IRF1405ZSTRL-7P depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRF1405ZSTRL-7P. We look forward to working with you to establish long-term relations of cooperation.
