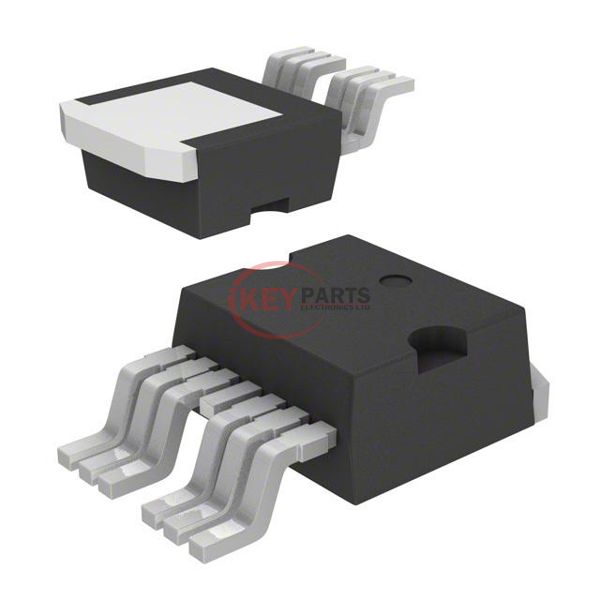

STH110N10F7-6

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STH110N10F7-6

Manufacturer :
STMicroelectronics
Mfr. Part # :
STH110N10F7-6
Description
MOSFET N-CH 100V 110A H2PAK-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STH110N10F7-6 PDF
In Stock
374
STH110N10F7-6 Tech Specifications
SeriesDeepGATE™, STripFET™ VII
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs6.5mOhm @ 55A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs72 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5117 pF @ 50 V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageH2PAK-6
Package / CaseTO-263-7, D²Pak (6 Leads + Tab)
Request Quote Now
Request Quote Now

We can supply STH110N10F7-6, use the request quote form to request STH110N10F7-6 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STH110N10F7-6. The price and lead time for STH110N10F7-6 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STH110N10F7-6. We look forward to working with you to establish long-term relations of cooperation.
