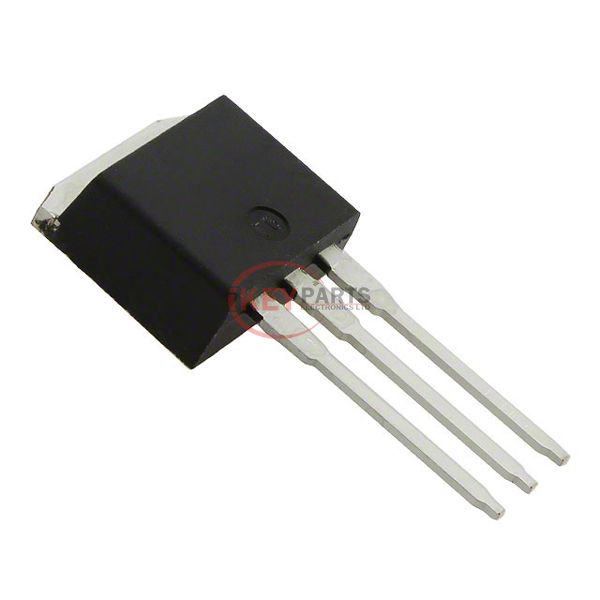

IRL3502L

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRL3502L

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRL3502L
Description
MOSFET N-CH 20V 110A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRL3502L PDF
In Stock
559
IRL3502L Tech Specifications
Series-
PackageTube
Part StatusDiscontinued at Digi-Key
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 7V
Rds On (Max) @ Id, Vgs7mOhm @ 64A, 7V
Vgs(th) (Max) @ Id700mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs110 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds4700 pF @ 15 V
FET Feature-
Power Dissipation (Max)140W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-262-3
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IRL3502L, use the request quote form to request IRL3502L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRL3502L. The price and lead time for IRL3502L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRL3502L. We look forward to working with you to establish long-term relations of cooperation.
