APT15F60S

Enlarger

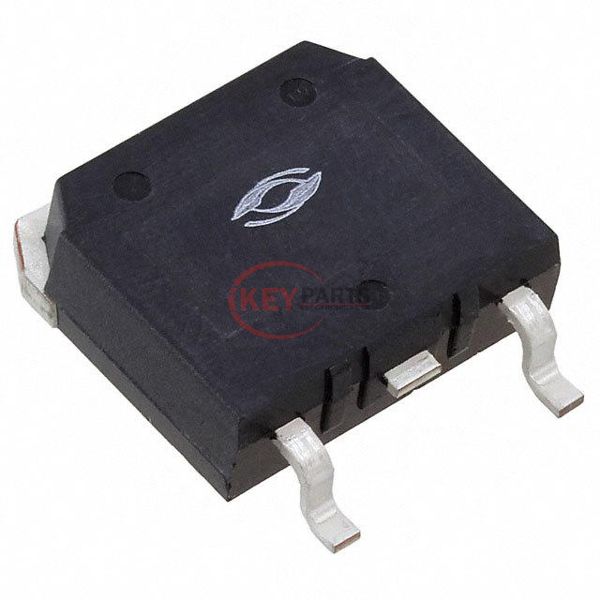

Lmages are for reference only See Product Specitications

Microsemi APT15F60S

Manufacturer :
Microsemi
Mfr. Part # :
APT15F60S
Description
MOSFET N-CH 600V 16A D3PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT15F60S PDF
In Stock
571
APT15F60S Tech Specifications
SeriesPOWER MOS 8™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs430mOhm @ 7A, 10V
Vgs(th) (Max) @ Id5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs72 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2882 pF @ 25 V
FET Feature-
Power Dissipation (Max)290W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD3Pak
Package / CaseTO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Request Quote Now
Request Quote Now

We can supply APT15F60S, use the request quote form to request APT15F60S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT15F60S. The price and lead time for APT15F60S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT15F60S. We look forward to working with you to establish long-term relations of cooperation.
