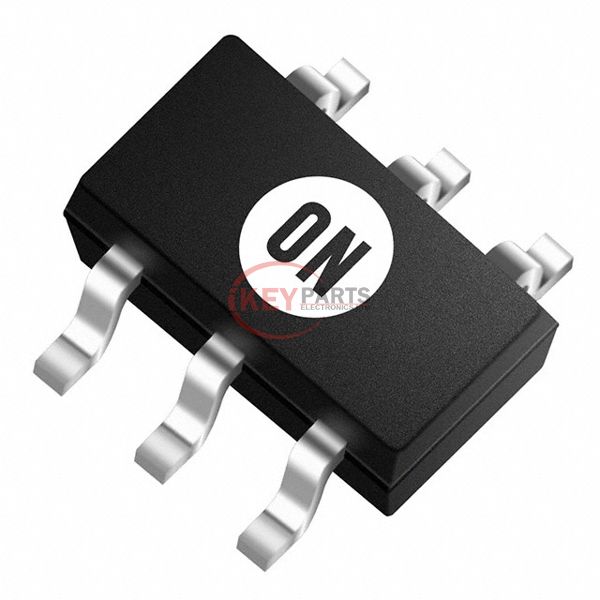

NTJS3157NT2

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTJS3157NT2

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTJS3157NT2
Description
MOSFET N-CH 20V 3.2A SC88/SC70-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTJS3157NT2 PDF
In Stock
653
NTJS3157NT2 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs60mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id400mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds500 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-88/SC70-6/SOT-363
Package / Case6-TSSOP, SC-88, SOT-363
Request Quote Now
Request Quote Now

We can supply NTJS3157NT2, use the request quote form to request NTJS3157NT2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTJS3157NT2. The price and lead time for NTJS3157NT2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTJS3157NT2. We look forward to working with you to establish long-term relations of cooperation.
