PMR290UNE,115

Enlarger

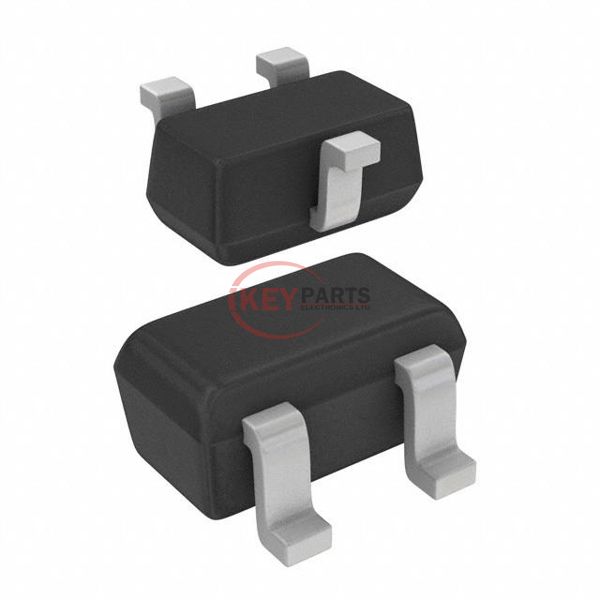

Lmages are for reference only See Product Specitications

NXP Semiconductors PMR290UNE,115

Manufacturer :
NXP Semiconductors
Mfr. Part # :
PMR290UNE,115
Description
MOSFET N-CH 20V 700MA SC75
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMR290UNE,115 PDF
PMR290UNE,115 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C700mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.68 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds83 pF @ 10 V
FET Feature-
Power Dissipation (Max)250mW (Ta), 770mW (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-75
Package / CaseSC-75, SOT-416
Request Quote Now
Request Quote Now

We can supply PMR290UNE,115, use the request quote form to request PMR290UNE,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMR290UNE,115. The price and lead time for PMR290UNE,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMR290UNE,115. We look forward to working with you to establish long-term relations of cooperation.
