2SJ681(Q)

Enlarger

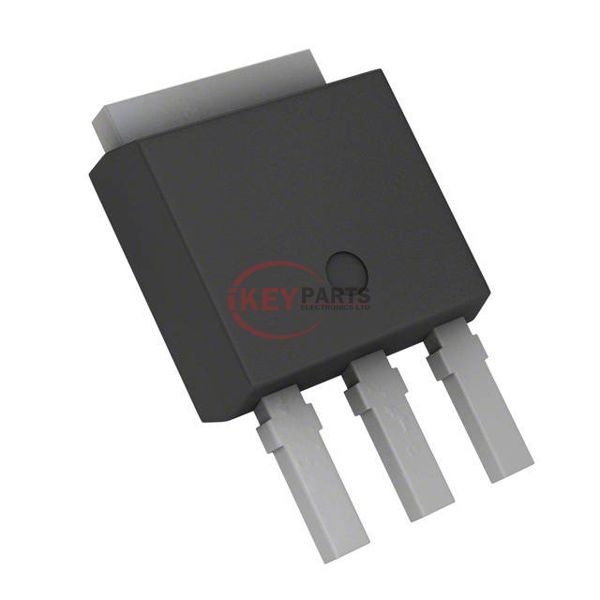

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation 2SJ681(Q)

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
2SJ681(Q)
Description
MOSFET P-CH 60V 5A PW-MOLD2
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SJ681(Q) PDF
In Stock
804
2SJ681(Q) Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs170mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds700 pF @ 10 V
FET Feature-
Power Dissipation (Max)20W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePW-MOLD2
Package / CaseTO-251-3 Stub Leads, IPak
Request Quote Now
Request Quote Now

We can supply 2SJ681(Q), use the request quote form to request 2SJ681(Q) pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SJ681(Q). The price and lead time for 2SJ681(Q) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SJ681(Q). We look forward to working with you to establish long-term relations of cooperation.
