IRLU9343

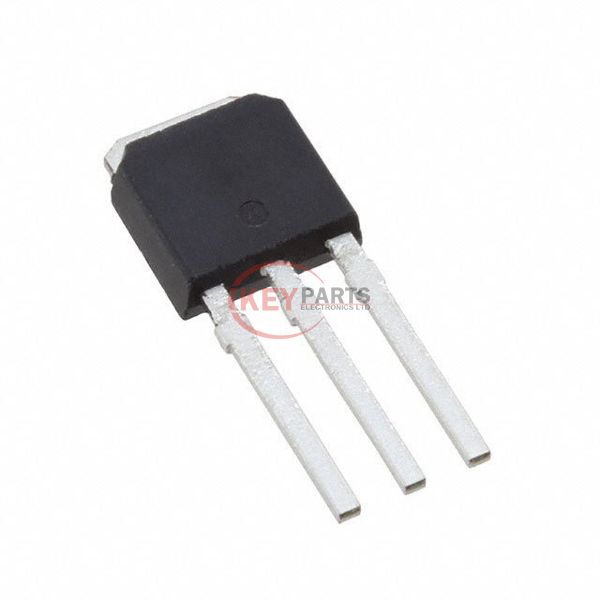

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IRLU9343

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IRLU9343
Description
MOSFET P-CH 55V 20A I-PAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRLU9343 PDF
IRLU9343 Tech Specifications
SeriesHEXFET®
PackageTube
Part StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)55 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs105mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs47 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds660 pF @ 50 V
FET Feature-
Power Dissipation (Max)79W (Tc)
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageI-PAK
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
Request Quote Now
Request Quote Now

We can supply IRLU9343, use the request quote form to request IRLU9343 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRLU9343. The price and lead time for IRLU9343 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRLU9343. We look forward to working with you to establish long-term relations of cooperation.
