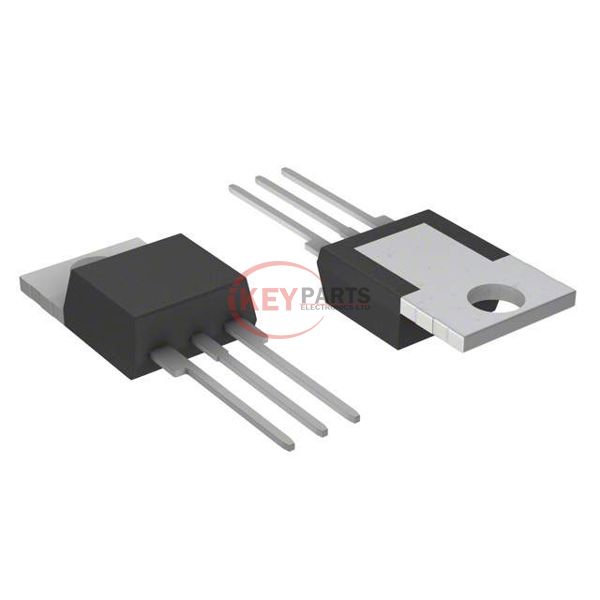

S8015L56

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse S8015L56

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
S8015L56
Description
SCR 800V 15A TO220
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
S8015L56 PDF
In Stock
363
S8015L56 Tech Specifications
Series-
PackageBulk
Part StatusDiscontinued at Digi-Key
Voltage - Off State800 V
Voltage - Gate Trigger (Vgt) (Max)1.5 V
Current - Gate Trigger (Igt) (Max)30 mA
Voltage - On State (Vtm) (Max)1.6 V
Current - On State (It (AV)) (Max)9.5 A
Current - On State (It (RMS)) (Max)15 A
Current - Hold (Ih) (Max)40 mA
Current - Off State (Max)20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)188A, 225A
SCR TypeStandard Recovery
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-3 Isolated Tab, Formed Leads
Supplier Device PackageTO-220 Isolated Tab
Request Quote Now
Request Quote Now

We can supply S8015L56, use the request quote form to request S8015L56 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number S8015L56. The price and lead time for S8015L56 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# S8015L56. We look forward to working with you to establish long-term relations of cooperation.
