70TPS12

Enlarger

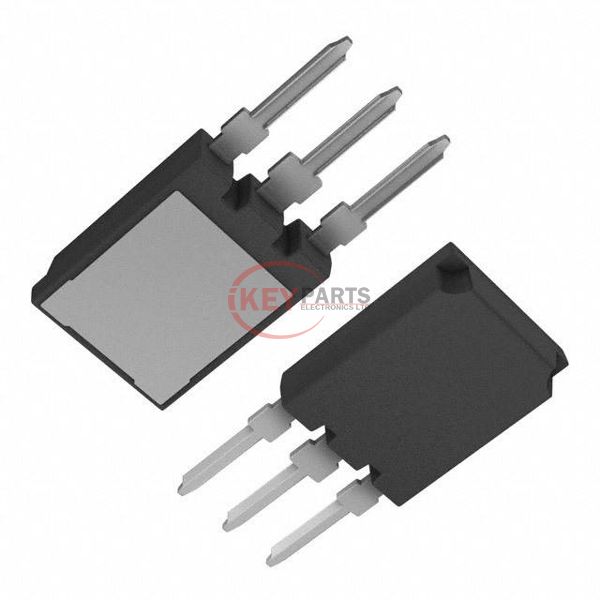

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division 70TPS12

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
70TPS12
Description
SCR 1.2KV 75A SUPER-247
Catalog
Thyristors - SCRs
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
70TPS12 PDF
In Stock
563
70TPS12 Tech Specifications
Series-
PackageTube
Part StatusObsolete
Voltage - Off State1.2 kV
Voltage - Gate Trigger (Vgt) (Max)1.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Voltage - On State (Vtm) (Max)1.4 V
Current - On State (It (AV)) (Max)70 A
Current - On State (It (RMS)) (Max)75 A
Current - Hold (Ih) (Max)200 mA
Current - Off State (Max)1 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1400A @ 50Hz
SCR TypeStandard Recovery
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-274AA
Supplier Device PackageSUPER-247™ (TO-274AA)
Request Quote Now
Request Quote Now

We can supply 70TPS12, use the request quote form to request 70TPS12 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 70TPS12. The price and lead time for 70TPS12 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 70TPS12. We look forward to working with you to establish long-term relations of cooperation.
