D690S22TXPSA1

Enlarger

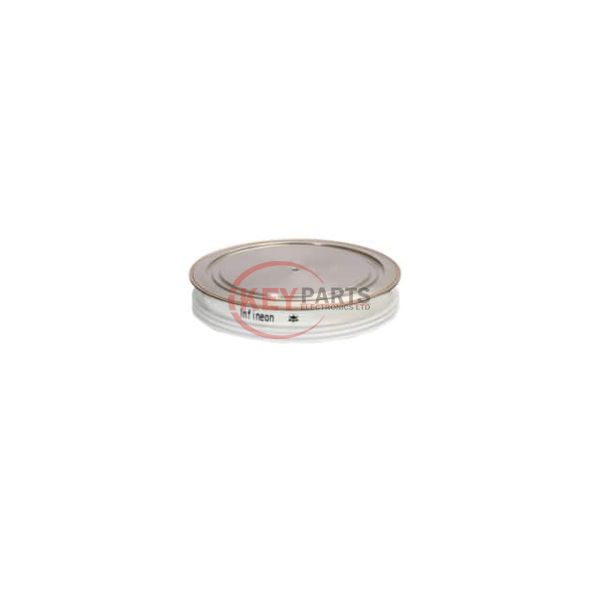

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) D690S22TXPSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
D690S22TXPSA1
Description
DIODE GEN PURP 2.2KV 690A
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
D690S22TXPSA1 PDF
In Stock
409
D690S22TXPSA1 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)2200 V
Current - Average Rectified (Io)690A
Voltage - Forward (Vf) (Max) @ If2.7 V @ 3000 A
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)9 µs
Current - Reverse Leakage @ Vr25 mA @ 2200 V
Capacitance @ Vr, F-
Mounting TypeChassis Mount
Package / CaseDO-200AB, B-PUK
Supplier Device Package-
Operating Temperature - Junction-40°C ~ 150°C
Request Quote Now
Request Quote Now

We can supply D690S22TXPSA1, use the request quote form to request D690S22TXPSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number D690S22TXPSA1. The price and lead time for D690S22TXPSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# D690S22TXPSA1. We look forward to working with you to establish long-term relations of cooperation.
