MA22D2800L

Enlarger

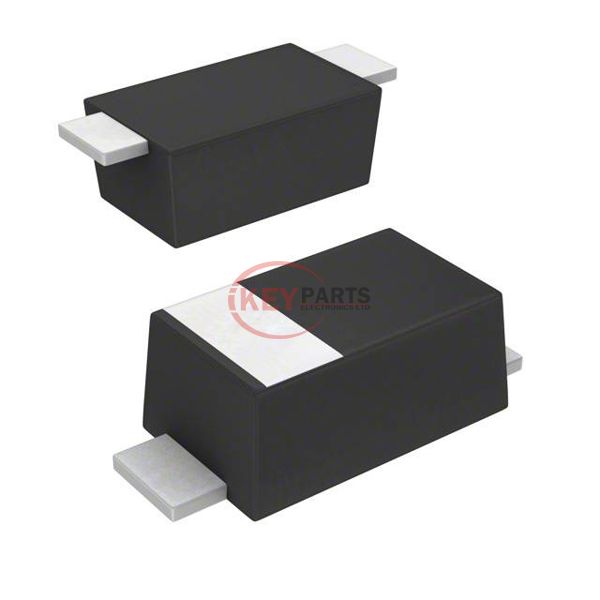

Lmages are for reference only See Product Specitications

Panasonic MA22D2800L

Manufacturer :
Panasonic
Mfr. Part # :
MA22D2800L
Description
DIODE SCHOTTKY 30V 1.5A MINI2
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MA22D2800L PDF
In Stock
288
MA22D2800L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)1.5A
Voltage - Forward (Vf) (Max) @ If460 mV @ 1.5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)13 ns
Current - Reverse Leakage @ Vr100 µA @ 30 V
Capacitance @ Vr, F50pF @ 10V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageMini2-F1
Operating Temperature - Junction150°C (Max)
Request Quote Now
Request Quote Now

We can supply MA22D2800L, use the request quote form to request MA22D2800L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MA22D2800L. The price and lead time for MA22D2800L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MA22D2800L. We look forward to working with you to establish long-term relations of cooperation.
