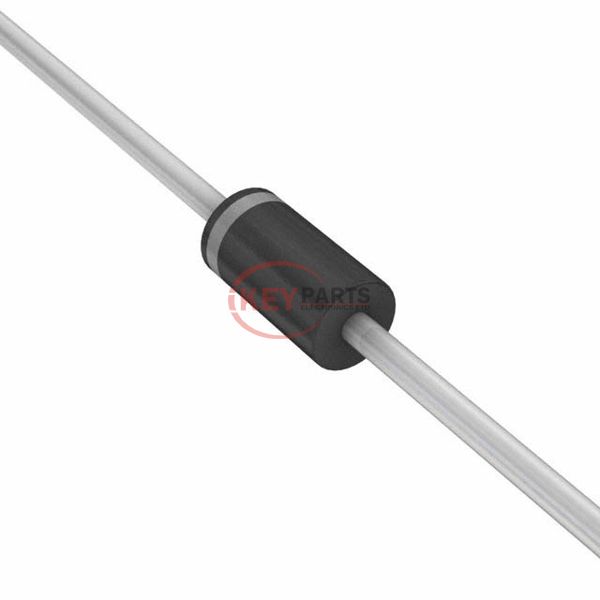

SB15H45-E3/54

Enlarger

Lmages are for reference only See Product Specitications

Vishay General Semiconductor – Diodes Division SB15H45-E3/54

Manufacturer :
Vishay General Semiconductor – Diodes Division
Mfr. Part # :
SB15H45-E3/54
Description
DIODE SCHOTTKY 45V 7A DO204AL
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SB15H45-E3/54 PDF
SB15H45-E3/54 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)45 V
Current - Average Rectified (Io)7A
Voltage - Forward (Vf) (Max) @ If480 mV @ 5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr300 µA @ 45 V
Capacitance @ Vr, F1020pF @ 4V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-204AL, DO-41, Axial
Supplier Device PackageDO-204AL (DO-41)
Operating Temperature - Junction200°C (Max)
Request Quote Now
Request Quote Now

We can supply SB15H45-E3/54, use the request quote form to request SB15H45-E3/54 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SB15H45-E3/54. The price and lead time for SB15H45-E3/54 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SB15H45-E3/54. We look forward to working with you to establish long-term relations of cooperation.
