DB2S30800L

Enlarger

Lmages are for reference only See Product Specitications

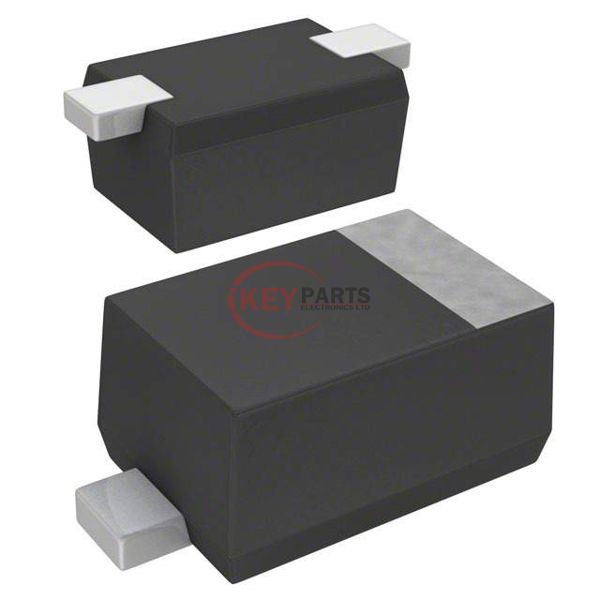

Panasonic DB2S30800L

Manufacturer :
Panasonic
Mfr. Part # :
DB2S30800L
Description
DIODE SCHOTTKY 30V 100MA SSMINI2
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DB2S30800L PDF
DB2S30800L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io)100mA
Voltage - Forward (Vf) (Max) @ If420 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)1.3 ns
Current - Reverse Leakage @ Vr120 µA @ 30 V
Capacitance @ Vr, F2.9pF @ 10V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSSMini2-F5-B
Operating Temperature - Junction125°C (Max)
Request Quote Now
Request Quote Now

We can supply DB2S30800L, use the request quote form to request DB2S30800L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DB2S30800L. The price and lead time for DB2S30800L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DB2S30800L. We look forward to working with you to establish long-term relations of cooperation.
