MA2SD1000L

Enlarger

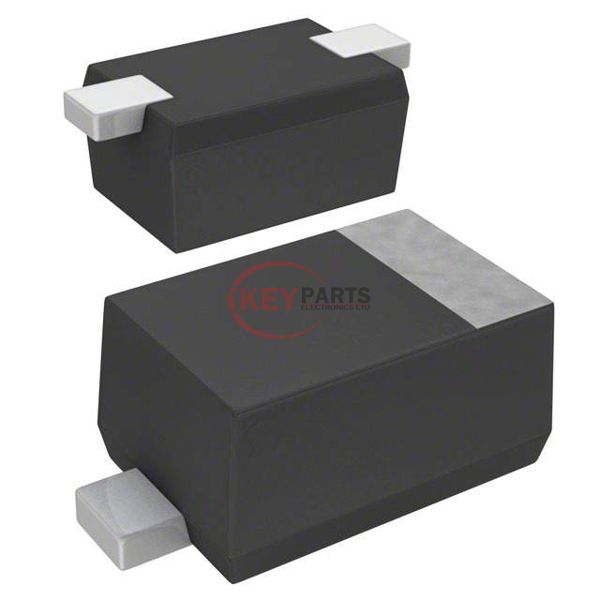

Lmages are for reference only See Product Specitications

Panasonic MA2SD1000L

Manufacturer :
Panasonic
Mfr. Part # :
MA2SD1000L
Description
DIODE SCHOTTKY 20V 200MA SSMINI2
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MA2SD1000L PDF
In Stock
722
MA2SD1000L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If470 mV @ 200 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)3 ns
Current - Reverse Leakage @ Vr20 µA @ 10 V
Capacitance @ Vr, F25pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageSSMini2-F1
Operating Temperature - Junction125°C (Max)
Request Quote Now
Request Quote Now

We can supply MA2SD1000L, use the request quote form to request MA2SD1000L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MA2SD1000L. The price and lead time for MA2SD1000L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MA2SD1000L. We look forward to working with you to establish long-term relations of cooperation.
