MA22D3900L

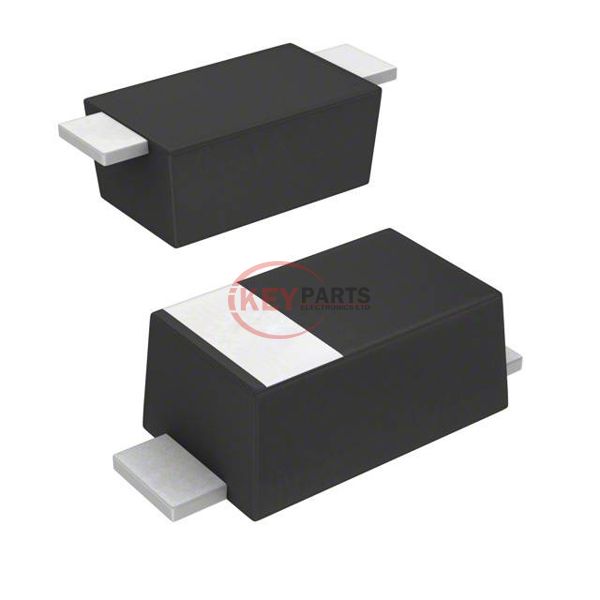

Enlarger

Lmages are for reference only See Product Specitications

Panasonic MA22D3900L

Manufacturer :
Panasonic
Mfr. Part # :
MA22D3900L
Description
DIODE SCHOTTKY 40V 1.57A MINI2
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MA22D3900L PDF
MA22D3900L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40 V
Current - Average Rectified (Io)1.57A
Voltage - Forward (Vf) (Max) @ If570 mV @ 1.5 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)30 ns
Current - Reverse Leakage @ Vr100 µA @ 40 V
Capacitance @ Vr, F50pF @ 10V, 1MHz
Mounting TypeSurface Mount
Package / CaseSOD-123F
Supplier Device PackageMini2-F1
Operating Temperature - Junction150°C (Max)
Request Quote Now
Request Quote Now

We can supply MA22D3900L, use the request quote form to request MA22D3900L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MA22D3900L. The price and lead time for MA22D3900L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MA22D3900L. We look forward to working with you to establish long-term relations of cooperation.
