MA2ZD1400L

Enlarger

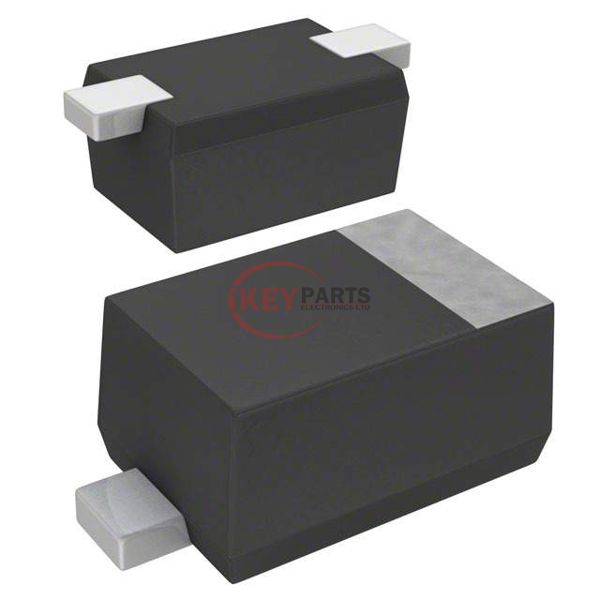

Lmages are for reference only See Product Specitications

Panasonic MA2ZD1400L

Manufacturer :
Panasonic
Mfr. Part # :
MA2ZD1400L
Description
DIODE SCHOTTKY 20V 100MA SMINI2
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MA2ZD1400L PDF
MA2ZD1400L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)100mA
Voltage - Forward (Vf) (Max) @ If400 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)3 ns
Current - Reverse Leakage @ Vr20 µA @ 10 V
Capacitance @ Vr, F25pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / CaseSC-90, SOD-323F
Supplier Device PackageSMini2-F1
Operating Temperature - Junction125°C (Max)
Request Quote Now
Request Quote Now

We can supply MA2ZD1400L, use the request quote form to request MA2ZD1400L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MA2ZD1400L. The price and lead time for MA2ZD1400L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MA2ZD1400L. We look forward to working with you to establish long-term relations of cooperation.
