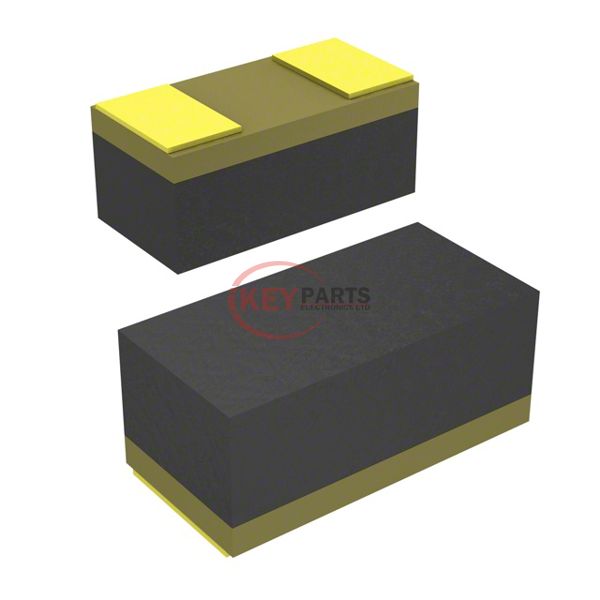

CD1005-B0520

Enlarger

Lmages are for reference only See Product Specitications

J.W. Miller / Bourns CD1005-B0520

Manufacturer :
J.W. Miller / Bourns
Mfr. Part # :
CD1005-B0520
Description
DIODE SCHOTTKY 20V 500MA 1005
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CD1005-B0520 PDF
In Stock
428
CD1005-B0520 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)500mA
Voltage - Forward (Vf) (Max) @ If550 mV @ 1 A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr100 µA @ 20 V
Capacitance @ Vr, F100pF @ 0V, 1MHz
Mounting TypeSurface Mount
Package / Case1005 (2512 Metric)
Supplier Device Package1005
Operating Temperature - Junction-40°C ~ 125°C
Request Quote Now
Request Quote Now

We can supply CD1005-B0520, use the request quote form to request CD1005-B0520 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CD1005-B0520. The price and lead time for CD1005-B0520 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CD1005-B0520. We look forward to working with you to establish long-term relations of cooperation.
