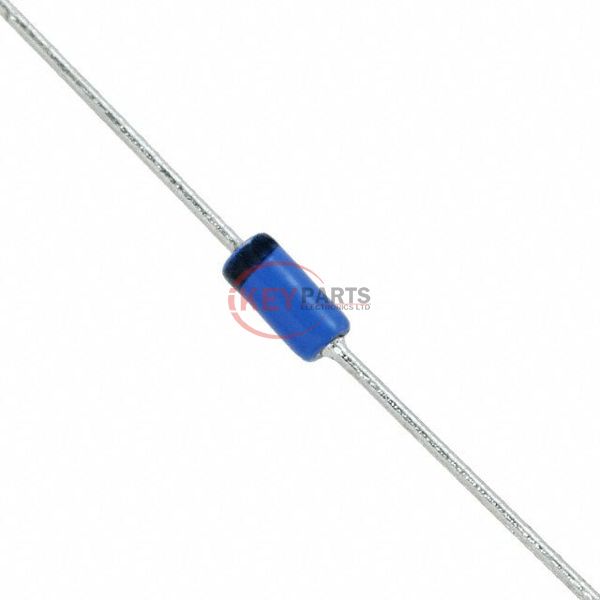

BAT47

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics BAT47

Manufacturer :
STMicroelectronics
Mfr. Part # :
BAT47
Description
DIODE SCHOTTKY 20V 350MA DO35
Catalog
Diodes - Rectifiers - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT47 PDF
BAT47 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)20 V
Current - Average Rectified (Io)350mA (DC)
Voltage - Forward (Vf) (Max) @ If1 V @ 300 mA
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr10 µA @ 20 V
Capacitance @ Vr, F20pF @ 0V, 1MHz
Mounting TypeThrough Hole
Package / CaseDO-204AH, DO-35, Axial
Supplier Device PackageDO-35
Operating Temperature - Junction-65°C ~ 125°C
Request Quote Now
Request Quote Now

We can supply BAT47, use the request quote form to request BAT47 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT47. The price and lead time for BAT47 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT47. We look forward to working with you to establish long-term relations of cooperation.
