ECH8503-TL-H

Enlarger

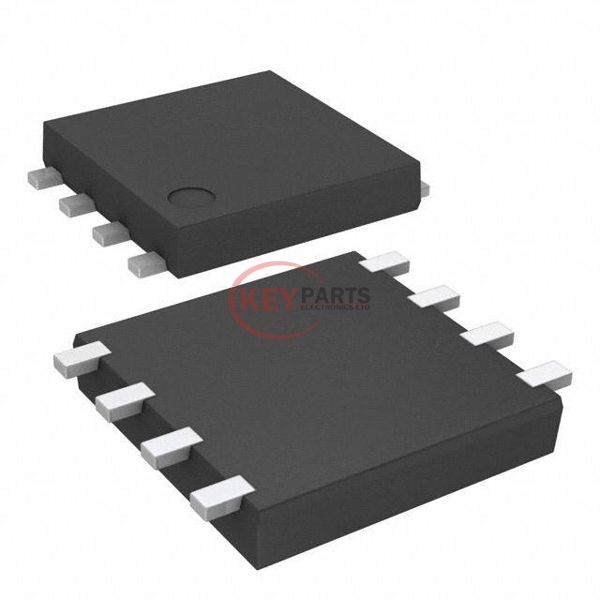

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor ECH8503-TL-H

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
ECH8503-TL-H
Description
TRANS 2PNP 50V 5A 8ECH
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ECH8503-TL-H PDF
ECH8503-TL-H Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Transistor Type2 PNP (Dual)
Current - Collector (Ic) (Max)5A
Voltage - Collector Emitter Breakdown (Max)50V
Vce Saturation (Max) @ Ib, Ic190mV @ 125mA, 2.5A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 500mA, 2V
Power - Max1.6W
Frequency - Transition280MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device Package8-ECH
Request Quote Now
Request Quote Now

We can supply ECH8503-TL-H, use the request quote form to request ECH8503-TL-H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECH8503-TL-H. The price and lead time for ECH8503-TL-H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECH8503-TL-H. We look forward to working with you to establish long-term relations of cooperation.
