ZDT694TC

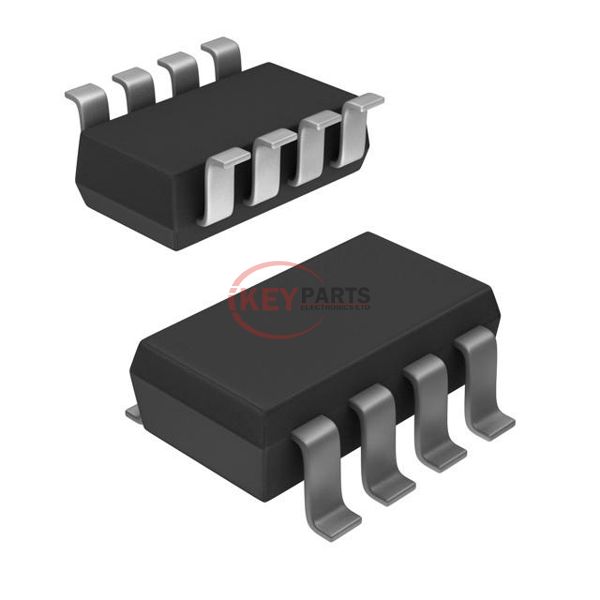

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZDT694TC

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZDT694TC
Description
TRANS 2NPN 120V 0.5A SM8
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZDT694TC PDF
ZDT694TC Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Transistor Type2 NPN (Dual)
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)120V
Vce Saturation (Max) @ Ib, Ic500mV @ 5mA, 400mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce400 @ 200mA, 2V
Power - Max2.75W
Frequency - Transition130MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-223-8
Supplier Device PackageSM-8
Request Quote Now
Request Quote Now

We can supply ZDT694TC, use the request quote form to request ZDT694TC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZDT694TC. The price and lead time for ZDT694TC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZDT694TC. We look forward to working with you to establish long-term relations of cooperation.
