ULN2803AFWG,C,EL

Enlarger

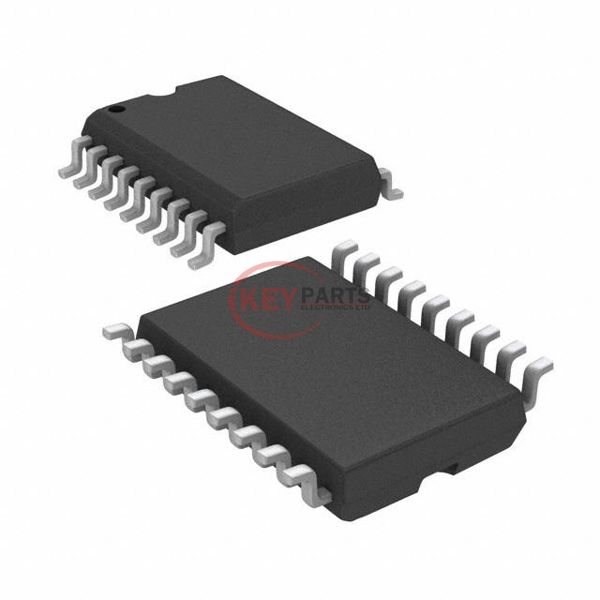

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation ULN2803AFWG,C,EL

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
ULN2803AFWG,C,EL
Description
TRANS 8NPN DARL 50V 0.5A 18SOL
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ULN2803AFWG,C,EL PDF
ULN2803AFWG,C,EL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Transistor Type8 NPN Darlington
Current - Collector (Ic) (Max)500mA
Voltage - Collector Emitter Breakdown (Max)50V
Vce Saturation (Max) @ Ib, Ic1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 350mA, 2V
Power - Max1.31W
Frequency - Transition-
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case18-SOIC (0.295", 7.50mm Width)
Supplier Device Package18-SOL
Request Quote Now
Request Quote Now

We can supply ULN2803AFWG,C,EL, use the request quote form to request ULN2803AFWG,C,EL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ULN2803AFWG,C,EL. The price and lead time for ULN2803AFWG,C,EL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ULN2803AFWG,C,EL. We look forward to working with you to establish long-term relations of cooperation.
