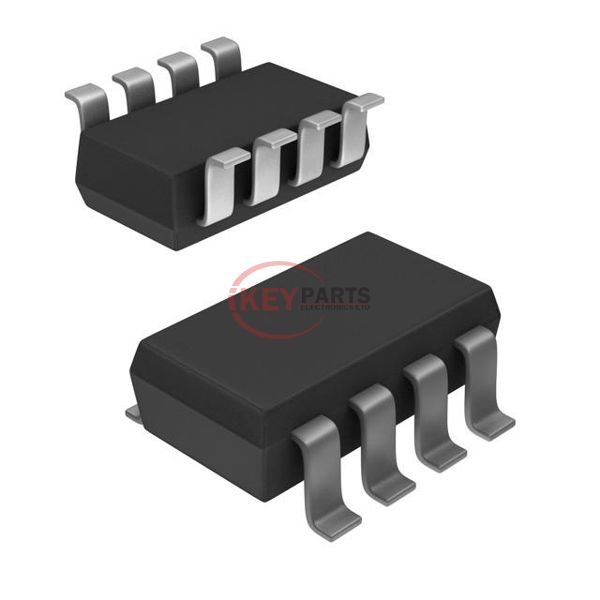

ZDT605TC

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZDT605TC

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZDT605TC
Description
TRANS 2NPN DARL 120V 1A SM8
Catalog
Transistors - Bipolar (BJT) - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZDT605TC PDF
ZDT605TC Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Transistor Type2 NPN Darlington (Dual)
Current - Collector (Ic) (Max)1A
Voltage - Collector Emitter Breakdown (Max)120V
Vce Saturation (Max) @ Ib, Ic1.5V @ 1mA, 1A
Current - Collector Cutoff (Max)10µA
DC Current Gain (hFE) (Min) @ Ic, Vce2000 @ 1A, 5V
Power - Max2.75W
Frequency - Transition150MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-223-8
Supplier Device PackageSM-8
Request Quote Now
Request Quote Now

We can supply ZDT605TC, use the request quote form to request ZDT605TC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZDT605TC. The price and lead time for ZDT605TC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZDT605TC. We look forward to working with you to establish long-term relations of cooperation.
