AN7709SP

Enlarger

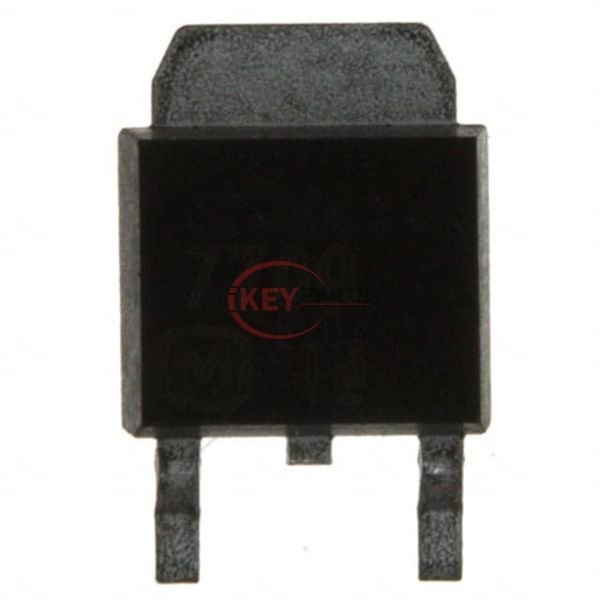

Lmages are for reference only See Product Specitications

Panasonic AN7709SP

Manufacturer :
Panasonic
Mfr. Part # :
AN7709SP
Description
IC REG LINEAR 9V 1.2A SP3SUA
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AN7709SP PDF
AN7709SP Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)20V
Voltage - Output (Min/Fixed)9V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output1.2A
Current - Quiescent (Iq)5 mA
Current - Supply (Max)-
PSRR65dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature25°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageSP-3SUA
Request Quote Now
Request Quote Now

We can supply AN7709SP, use the request quote form to request AN7709SP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AN7709SP. The price and lead time for AN7709SP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AN7709SP. We look forward to working with you to establish long-term relations of cooperation.
