PQ120DNA1ZPH

Enlarger

Lmages are for reference only See Product Specitications

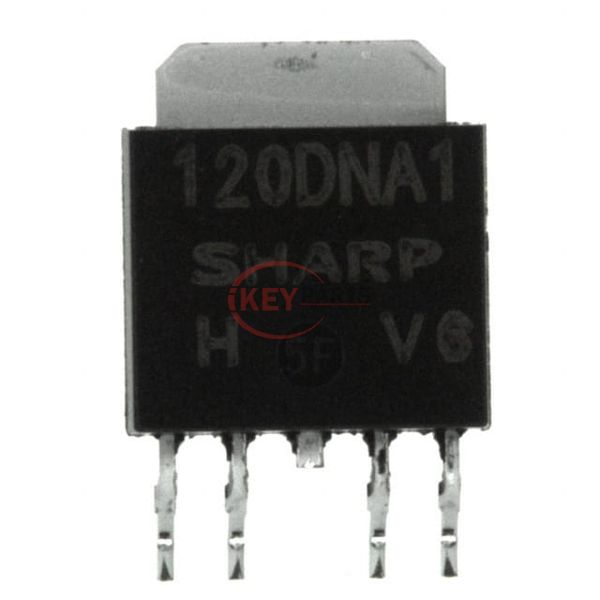

Sharp Microelectronics PQ120DNA1ZPH

Manufacturer :
Sharp Microelectronics
Mfr. Part # :
PQ120DNA1ZPH
Description
IC REG LINEAR 12V 1A SC63
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PQ120DNA1ZPH PDF
PQ120DNA1ZPH Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)24V
Voltage - Output (Min/Fixed)12V
Voltage - Output (Max)-
Voltage Dropout (Max)0.5V @ 500mA
Current - Output1A
Current - Quiescent (Iq)8 mA
Current - Supply (Max)-
PSRR60dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
Supplier Device PackageSC-63
Request Quote Now
Request Quote Now

We can supply PQ120DNA1ZPH, use the request quote form to request PQ120DNA1ZPH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PQ120DNA1ZPH. The price and lead time for PQ120DNA1ZPH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PQ120DNA1ZPH. We look forward to working with you to establish long-term relations of cooperation.
