MAX8559ETAAG+TG50

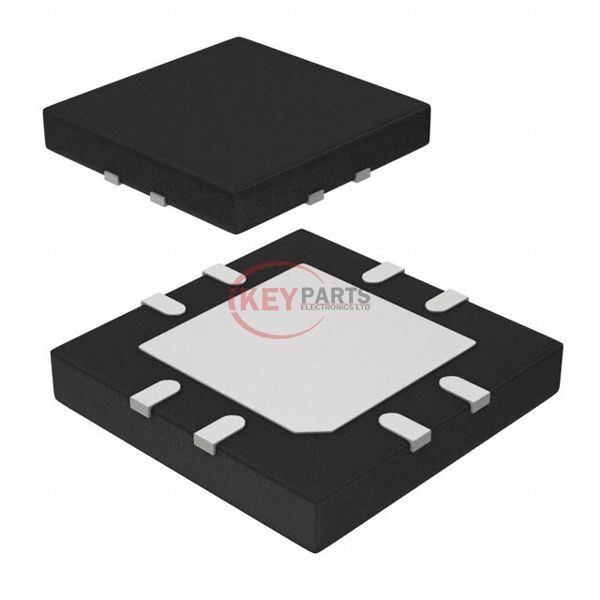

Enlarger

Lmages are for reference only See Product Specitications

Maxim Integrated MAX8559ETAAG+TG50

Manufacturer :
Maxim Integrated
Mfr. Part # :
MAX8559ETAAG+TG50
Description
IC REG LIN 3.3V/3V 300MA 8TDFN
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAX8559ETAAG+TG50 PDF
MAX8559ETAAG+TG50 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)6.5V
Voltage - Output (Min/Fixed)3.3V, 3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.12V @ 100mA, 0.12V @ 100mA
Current - Output300mA, 300mA
Current - Quiescent (Iq)290 µA
Current - Supply (Max)220 µA
PSRR70dB ~ 54dB (10kHz ~ 100kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-TDFN-EP (3x3)
Request Quote Now
Request Quote Now

We can supply MAX8559ETAAG+TG50, use the request quote form to request MAX8559ETAAG+TG50 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX8559ETAAG+TG50. The price and lead time for MAX8559ETAAG+TG50 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX8559ETAAG+TG50. We look forward to working with you to establish long-term relations of cooperation.
