NJM2396F08

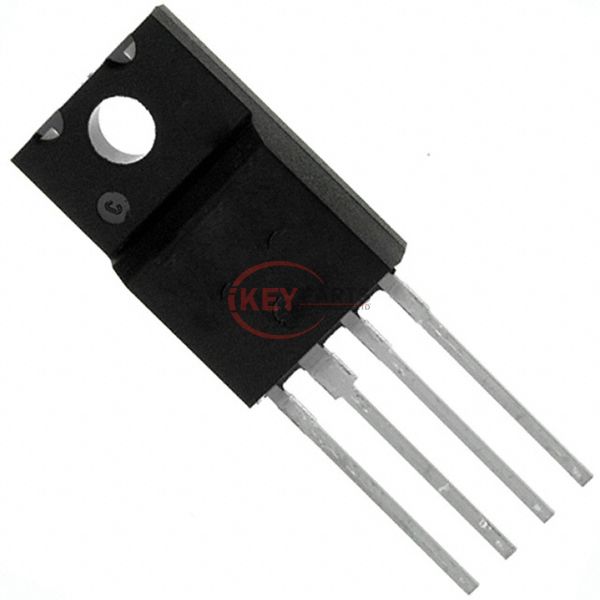

Enlarger

Lmages are for reference only See Product Specitications

New Japan Radio (NJR) NJM2396F08

Manufacturer :
New Japan Radio (NJR)
Mfr. Part # :
NJM2396F08
Description
IC REG LINEAR 8V 1.5A TO220F-4
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NJM2396F08 PDF
NJM2396F08 Tech Specifications
Series-
PackageTube
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)8V
Voltage - Output (Max)-
Voltage Dropout (Max)0.5V @ 500mA
Current - Output1.5A
Current - Quiescent (Iq)5 mA
Current - Supply (Max)-
PSRR58dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / CaseTO-220-4 Full Pack
Supplier Device PackageTO-220F-4
Request Quote Now
Request Quote Now

We can supply NJM2396F08, use the request quote form to request NJM2396F08 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NJM2396F08. The price and lead time for NJM2396F08 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NJM2396F08. We look forward to working with you to establish long-term relations of cooperation.
