MAX15009ATN+

Enlarger

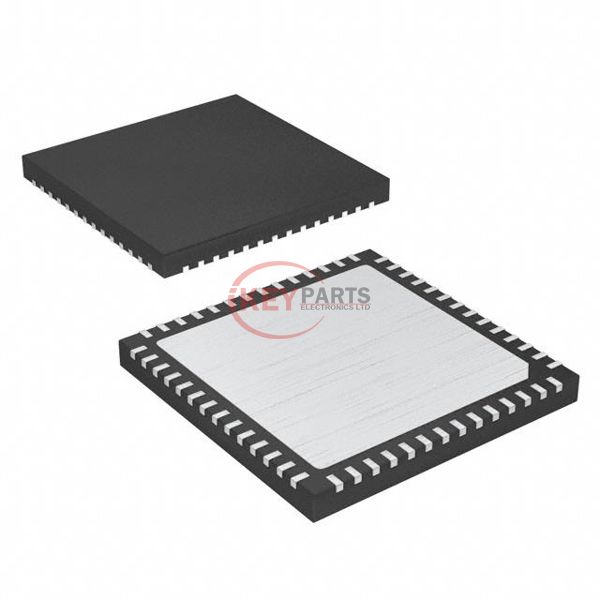

Lmages are for reference only See Product Specitications

Maxim Integrated MAX15009ATN+

Manufacturer :
Maxim Integrated
Mfr. Part # :
MAX15009ATN+
Description
IC REG LIN POS ADJ 300MA 56TQFN
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAX15009ATN+ PDF
In Stock
970
MAX15009ATN+ Tech Specifications
Series-
PackageTube
Part StatusObsolete
Output ConfigurationPositive
Output TypeAdjustable (Fixed)
Number of Regulators1
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)1.8V, (5V)
Voltage - Output (Max)11V
Voltage Dropout (Max)1.5V @ 300mA
Current - Output300mA
Current - Quiescent (Iq)85 µA
Current - Supply (Max)500 µA
PSRR60dB (100Hz)
Control FeaturesCurrent Limit, Enable, Hold, Reset
Protection FeaturesLoad Dump, Over Temperature, Over Voltage, Short Circuit
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case56-WFQFN Exposed Pad
Supplier Device Package56-TQFN (8x8)
Request Quote Now
Request Quote Now

We can supply MAX15009ATN+, use the request quote form to request MAX15009ATN+ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX15009ATN+. The price and lead time for MAX15009ATN+ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX15009ATN+. We look forward to working with you to establish long-term relations of cooperation.
