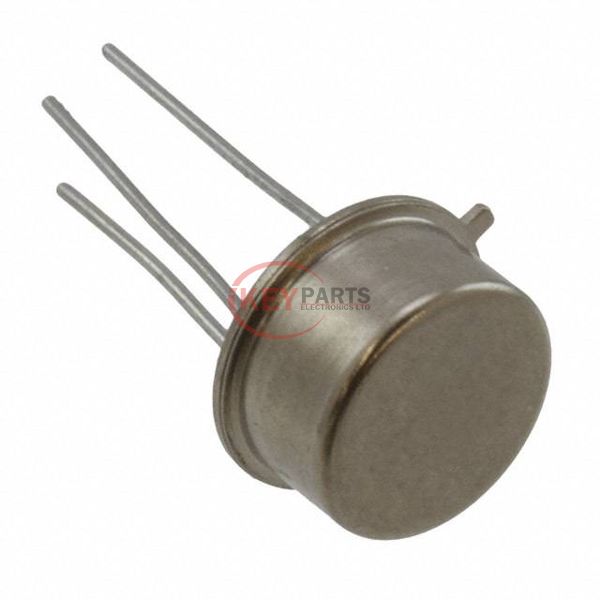

SG7815T-JAN

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology SG7815T-JAN

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
SG7815T-JAN
Description
IC REG LINEAR 15V 500MA TO39
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SG7815T-JAN PDF
SG7815T-JAN Tech Specifications
SeriesMilitary, MIL-STD-883
PackageTray
Part StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)15V
Voltage - Output (Max)-
Voltage Dropout (Max)2.5V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)7 mA
Current - Supply (Max)-
PSRR60dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-39
Request Quote Now
Request Quote Now

We can supply SG7815T-JAN, use the request quote form to request SG7815T-JAN pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SG7815T-JAN. The price and lead time for SG7815T-JAN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SG7815T-JAN. We look forward to working with you to establish long-term relations of cooperation.
