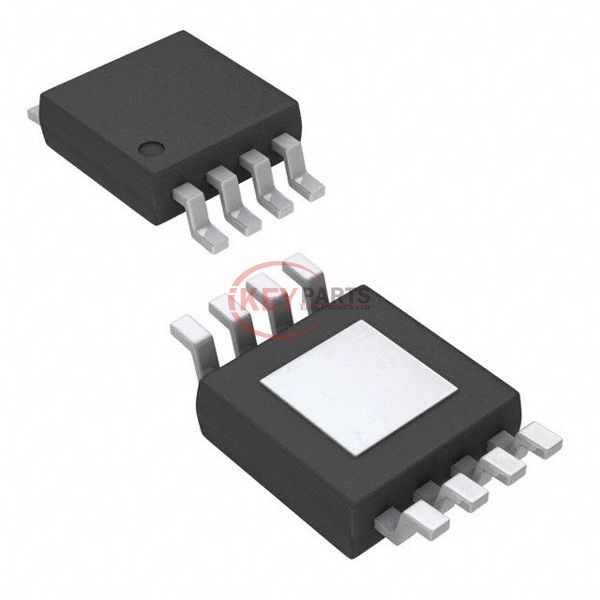

AP1154ADL21

Enlarger

Lmages are for reference only See Product Specitications

Asahi Kasei Microdevices / AKM Semiconductor AP1154ADL21

Manufacturer :
Asahi Kasei Microdevices / AKM Semiconductor
Mfr. Part # :
AP1154ADL21
Description
IC REG LINEAR 2.1V 1A 8HSOP
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AP1154ADL21 PDF
AP1154ADL21 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)14V
Voltage - Output (Min/Fixed)2.1V
Voltage - Output (Max)-
Voltage Dropout (Max)0.67V @ 1A
Current - Output1A
Current - Quiescent (Iq)624 µA
Current - Supply (Max)1.8 mA
PSRR80dB (1kHz)
Control FeaturesCurrent Limit, Enable
Protection FeaturesOver Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package8-HSOP
Request Quote Now
Request Quote Now

We can supply AP1154ADL21, use the request quote form to request AP1154ADL21 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AP1154ADL21. The price and lead time for AP1154ADL21 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AP1154ADL21. We look forward to working with you to establish long-term relations of cooperation.
