MC7809ECDTXM

Enlarger

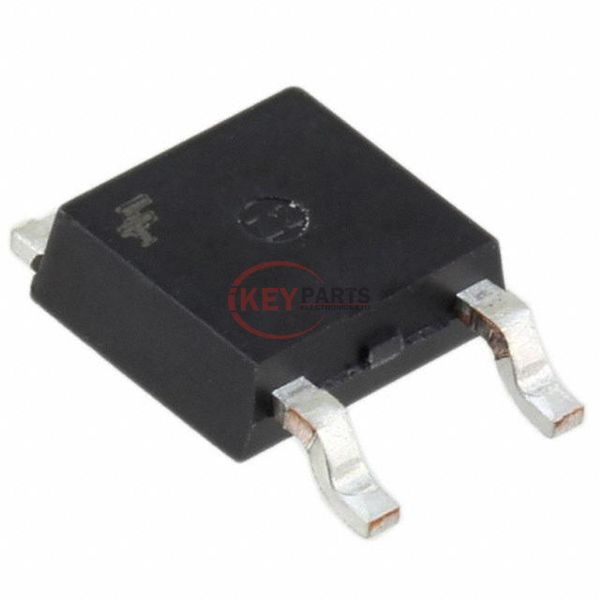

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MC7809ECDTXM

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MC7809ECDTXM
Description
IC REG LINEAR 9V 1A TO252
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MC7809ECDTXM PDF
In Stock
551
MC7809ECDTXM Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)35V
Voltage - Output (Min/Fixed)9V
Voltage - Output (Max)-
Voltage Dropout (Max)2V @ 1A (Typ)
Current - Output1A
Current - Quiescent (Iq)8 mA
Current - Supply (Max)-
PSRR71dB (120Hz)
Control Features-
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature0°C ~ 125°C
Mounting TypeSurface Mount
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device PackageTO-252, (D-Pak)
Request Quote Now
Request Quote Now

We can supply MC7809ECDTXM, use the request quote form to request MC7809ECDTXM pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MC7809ECDTXM. The price and lead time for MC7809ECDTXM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MC7809ECDTXM. We look forward to working with you to establish long-term relations of cooperation.
