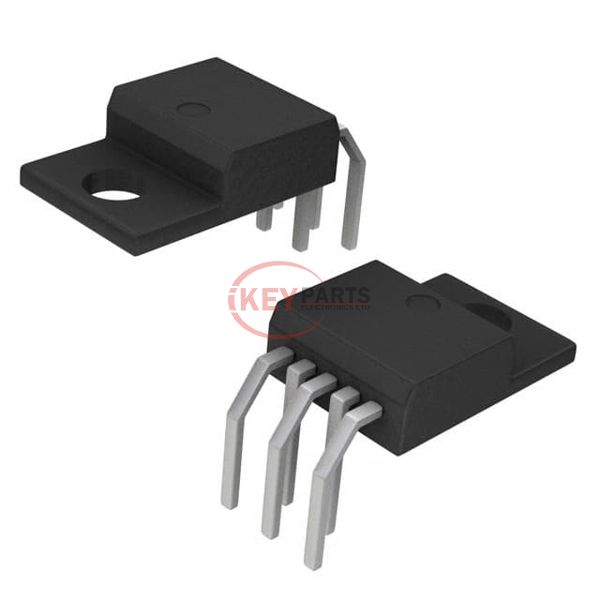

CS8156YTHA5

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor CS8156YTHA5

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
CS8156YTHA5
Description
IC REG LIN 12V/5V TO220-5
Catalog
PMIC - Voltage Regulators - Linear
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CS8156YTHA5 PDF
CS8156YTHA5 Tech Specifications
Series-
PackageTube
Part StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)26V
Voltage - Output (Min/Fixed)12V, 5V
Voltage - Output (Max)-
Voltage Dropout (Max)1V @ 750mA, 0.6V @ 100mA
Current - Output750mA, 100mA
Current - Quiescent (Iq)125 mA
Current - Supply (Max)250 mA
PSRR70dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Temperature, Over Voltage, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-220-5 Formed Leads
Supplier Device PackageTO-220-5 Horizontal
Request Quote Now
Request Quote Now

We can supply CS8156YTHA5, use the request quote form to request CS8156YTHA5 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CS8156YTHA5. The price and lead time for CS8156YTHA5 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CS8156YTHA5. We look forward to working with you to establish long-term relations of cooperation.
