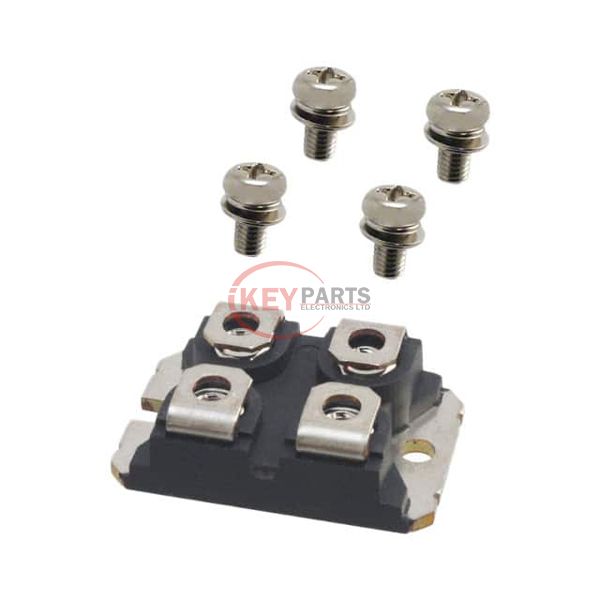

APT75GN120JDQ3

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT75GN120JDQ3

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT75GN120JDQ3
Description
IGBT MOD 1200V 124A 379W ISOTOP
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT75GN120JDQ3 PDF
APT75GN120JDQ3 Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)124 A
Power - Max379 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 75A
Current - Collector Cutoff (Max)200 µA
Input Capacitance (Cies) @ Vce4.8 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseISOTOP
Supplier Device PackageISOTOP®
Request Quote Now
Request Quote Now

We can supply APT75GN120JDQ3, use the request quote form to request APT75GN120JDQ3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT75GN120JDQ3. The price and lead time for APT75GN120JDQ3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT75GN120JDQ3. We look forward to working with you to establish long-term relations of cooperation.
