MG1225H-XBN2MM

Enlarger

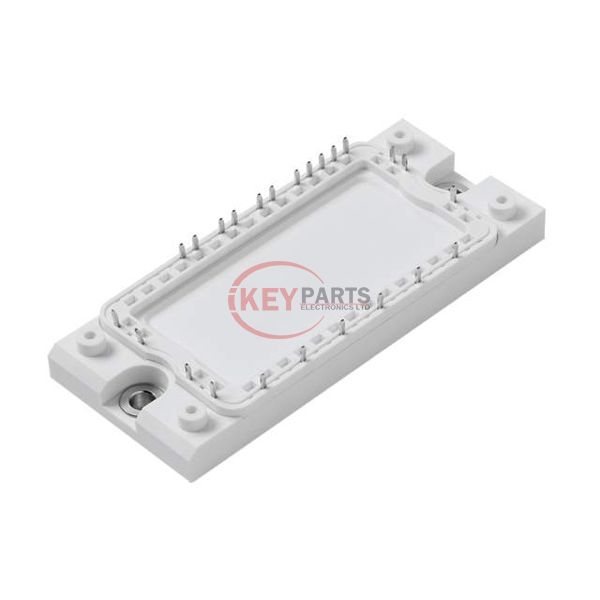

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse MG1225H-XBN2MM

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
MG1225H-XBN2MM
Description
IGBT MOD 1200V 25A 105W
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MG1225H-XBN2MM PDF
MG1225H-XBN2MM Tech Specifications
Series-
PackageBulk
Part StatusActive
IGBT Type-
ConfigurationThree Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)25 A
Power - Max105 W
Vce(on) (Max) @ Vge, Ic1.7V @ 15V, 25A
Current - Collector Cutoff (Max)50 µA
Input Capacitance (Cies) @ Vce1.1 nF @ 25 V
InputThree Phase Bridge Rectifier
NTC ThermistorYes
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageModule
Request Quote Now
Request Quote Now

We can supply MG1225H-XBN2MM, use the request quote form to request MG1225H-XBN2MM pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MG1225H-XBN2MM. The price and lead time for MG1225H-XBN2MM depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MG1225H-XBN2MM. We look forward to working with you to establish long-term relations of cooperation.
