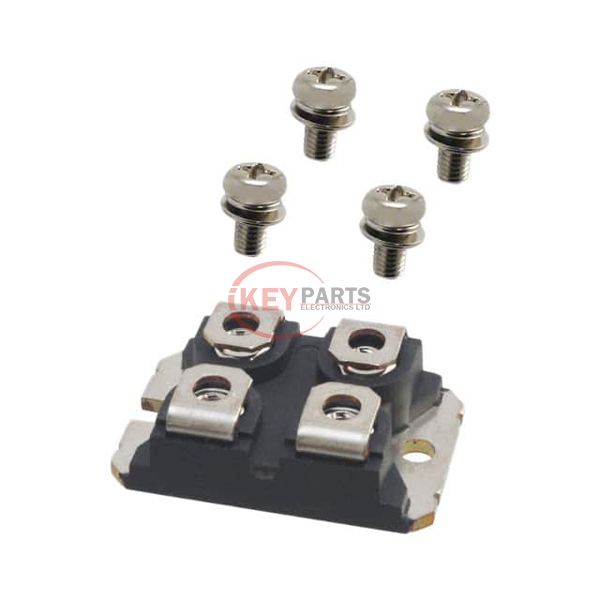

APT150GN120J

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APT150GN120J

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APT150GN120J
Description
IGBT MOD 1200V 215A 625W ISOTOP
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APT150GN120J PDF
APT150GN120J Tech Specifications
Series-
PackageTube
Part StatusActive
IGBT TypeTrench Field Stop
ConfigurationSingle
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)215 A
Power - Max625 W
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 150A
Current - Collector Cutoff (Max)100 µA
Input Capacitance (Cies) @ Vce9.5 nF @ 25 V
InputStandard
NTC ThermistorNo
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseISOTOP
Supplier Device PackageISOTOP®
Request Quote Now
Request Quote Now

We can supply APT150GN120J, use the request quote form to request APT150GN120J pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APT150GN120J. The price and lead time for APT150GN120J depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APT150GN120J. We look forward to working with you to establish long-term relations of cooperation.
