A2P75S12M3

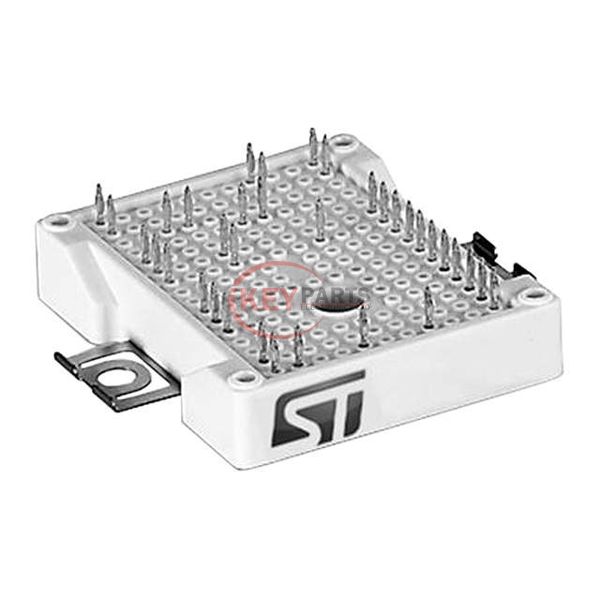

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics A2P75S12M3

Manufacturer :
STMicroelectronics
Mfr. Part # :
A2P75S12M3
Description
IGBT MOD 1200V 75A ACEPACK2
Catalog
Transistors - IGBTs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
A2P75S12M3 PDF
In Stock
892
A2P75S12M3 Tech Specifications
Series-
PackageTray
Part StatusActive
IGBT TypeTrench Field Stop
ConfigurationThree Phase Inverter
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)75 A
Power - Max454.5 W
Vce(on) (Max) @ Vge, Ic2.3V @ 15V, 75A
Current - Collector Cutoff (Max)100 µA
Input Capacitance (Cies) @ Vce4700 pF @ 25 V
InputStandard
NTC ThermistorYes
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageACEPACK™ 2
Request Quote Now
Request Quote Now

We can supply A2P75S12M3, use the request quote form to request A2P75S12M3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number A2P75S12M3. The price and lead time for A2P75S12M3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# A2P75S12M3. We look forward to working with you to establish long-term relations of cooperation.
