Series | µIPM™ | |
Package | Tape & Reel (TR)Cut Tape (CT) | |
Part Status | Active | |
Output Configuration | Half Bridge | |
Applications | AC Motors, DC Motors, DC-DC Converters, General Purpose | |
Interface | Logic | |
Load Type | Inductive, Capacitive | |
Technology | Power MOSFET | |
Rds On (Typ) | 2.7mOhm | |
Current - Output / Channel | 80A | |
Current - Peak Output | - | |
Voltage - Supply | 10V ~ 20V | |
Voltage - Load | 40V (Max) | |
Operating Temperature | 150°C (TJ) | |
Features | Bootstrap Circuit | |
Fault Protection | UVLO | |
Mounting Type | Surface Mount | |

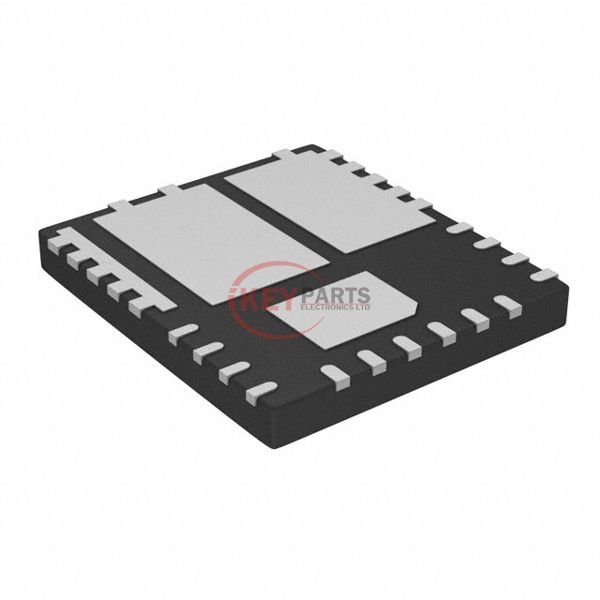

Package / Case | 27-PowerVQFN | |
Supplier Device Package | 27-PQFN (7x8) |
We can supply IRSM005-800MHTR, use the request quote form to request IRSM005-800MHTR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRSM005-800MHTR. The price and lead time for IRSM005-800MHTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRSM005-800MHTR. We look forward to working with you to establish long-term relations of cooperation.
![]() |
