MP6536DU-LF-Z

Enlarger

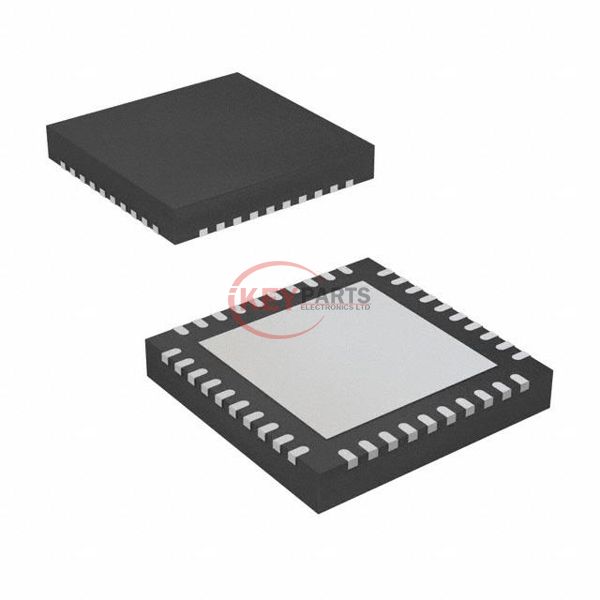

Lmages are for reference only See Product Specitications

MPS (Monolithic Power Systems) MP6536DU-LF-Z

Manufacturer :
MPS (Monolithic Power Systems)
Mfr. Part # :
MP6536DU-LF-Z
Description
26V, 5.5A, 3-CHANNEL HALF-BRIDGE
Catalog
PMIC - Full, Half-Bridge Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MP6536DU-LF-Z PDF
MP6536DU-LF-Z Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose
InterfaceLogic, PWM
Load TypeCapacitive
TechnologyPower MOSFET
Rds On (Typ)140mOhm LS + HS
Current - Output / Channel5.5A
Current - Peak Output5.5A
Voltage - Supply5V ~ 26V
Voltage - Load5V ~ 26V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-QFN (5x5)
Request Quote Now
Request Quote Now

We can supply MP6536DU-LF-Z, use the request quote form to request MP6536DU-LF-Z pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MP6536DU-LF-Z. The price and lead time for MP6536DU-LF-Z depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MP6536DU-LF-Z. We look forward to working with you to establish long-term relations of cooperation.
