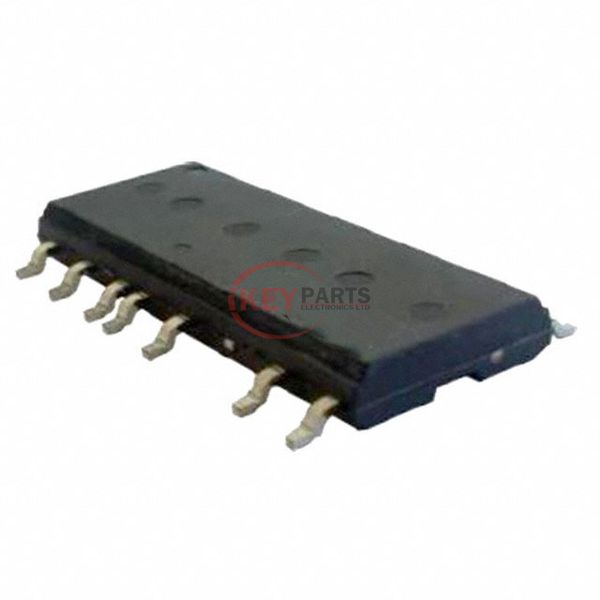

Series | µIPM™-DIP | |
Package | Bulk | |
Part Status | Active | |
Output Configuration | Half Bridge (3) | |
Applications | AC Motors | |
Interface | Logic | |
Load Type | Inductive | |
Technology | UMOS | |
Rds On (Typ) | 340mOhm | |
Current - Output / Channel | 4.6A | |
Current - Peak Output | 15A | |
Voltage - Supply | 13.5V ~ 16.5V | |
Voltage - Load | 200V (Max) | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Features | Bootstrap Circuit | |
Fault Protection | UVLO | |
Mounting Type | Surface Mount | |
Package / Case | 32-PowerSMD Module, 23 Leads | |
Supplier Device Package | 23-SOP |
We can supply IRSM505-084PA, use the request quote form to request IRSM505-084PA pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRSM505-084PA. The price and lead time for IRSM505-084PA depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRSM505-084PA. We look forward to working with you to establish long-term relations of cooperation.
![]() |
