MAX509ACAP+

Enlarger

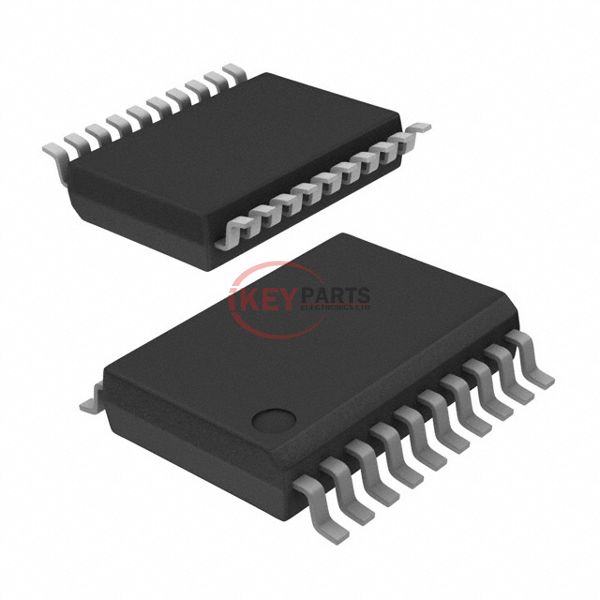

Lmages are for reference only See Product Specitications

Maxim Integrated MAX509ACAP+

Manufacturer :
Maxim Integrated
Mfr. Part # :
MAX509ACAP+
Description
IC DAC 8BIT V-OUT 20SSOP
Catalog
Data Acquisition - Digital to Analog Converters (DAC)
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAX509ACAP+ PDF
In Stock
1081254
MAX509ACAP+ Tech Specifications
Series-
PackageTube
Part StatusActive
Number of Bits8
Number of D/A Converters4
Settling Time6µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI
Reference TypeExternal
Voltage - Supply, Analog±5V
Voltage - Supply, Digital5V
INL/DNL (LSB)-, ±1 (Max)
ArchitectureR-2R
Operating Temperature0°C ~ 70°C
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
Mounting TypeSurface Mount
Request Quote Now
Request Quote Now

We can supply MAX509ACAP+, use the request quote form to request MAX509ACAP+ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX509ACAP+. The price and lead time for MAX509ACAP+ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX509ACAP+. We look forward to working with you to establish long-term relations of cooperation.
