MAX503EAG+T

Enlarger

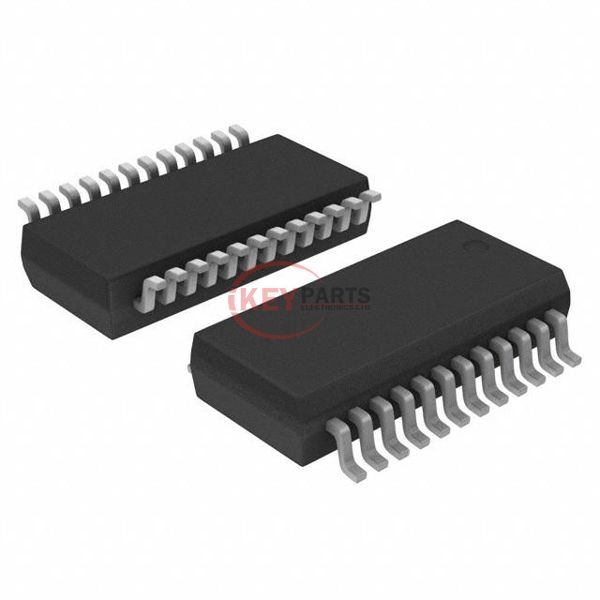

Lmages are for reference only See Product Specitications

Maxim Integrated MAX503EAG+T

Manufacturer :
Maxim Integrated
Mfr. Part # :
MAX503EAG+T
Description
IC DAC 10BIT V-OUT 24SSOP
Catalog
Data Acquisition - Digital to Analog Converters (DAC)
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAX503EAG+T PDF
In Stock
633
MAX503EAG+T Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Number of Bits10
Number of D/A Converters1
Settling Time25µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±0.5 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case24-SSOP (0.209", 5.30mm Width)
Supplier Device Package24-SSOP
Mounting TypeSurface Mount
Request Quote Now
Request Quote Now

We can supply MAX503EAG+T, use the request quote form to request MAX503EAG+T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX503EAG+T. The price and lead time for MAX503EAG+T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX503EAG+T. We look forward to working with you to establish long-term relations of cooperation.
