LNK6774E

Enlarger

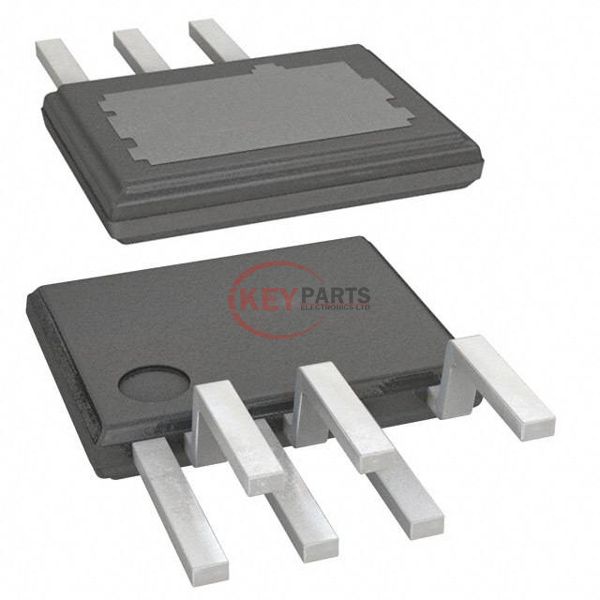

Lmages are for reference only See Product Specitications

Power Integrations LNK6774E

Manufacturer :
Power Integrations
Mfr. Part # :
LNK6774E
Description
IC OFF-LINE SWITCH PWM 7SIP
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
LNK6774E PDF
LNK6774E Tech Specifications
SeriesLinkSwitch™-HP
PackageTube
Part StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown725V
TopologyFlyback
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)-
Duty Cycle64%
Frequency - Switching120kHz ~ 136kHz
Power (Watts)47 W
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features-
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case7-SIP, 6 Leads, Exposed Pad, Formed Leads
Supplier Device PackageeSIP-7C
Mounting TypeThrough Hole
Request Quote Now
Request Quote Now

We can supply LNK6774E, use the request quote form to request LNK6774E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LNK6774E. The price and lead time for LNK6774E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LNK6774E. We look forward to working with you to establish long-term relations of cooperation.
