TOP253EG

Enlarger

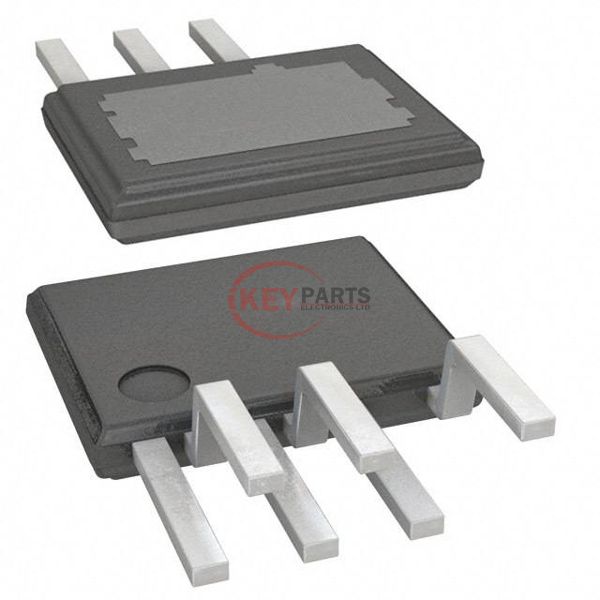

Lmages are for reference only See Product Specitications

Power Integrations TOP253EG

Manufacturer :
Power Integrations
Mfr. Part # :
TOP253EG
Description
IC OFFLINE SWIT PROG OVP 7CESIP
Catalog
PMIC - AC DC Converters, Offline Switchers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TOP253EG PDF
In Stock
306
TOP253EG Tech Specifications
SeriesTOPSwitch®-HX
PackageTube
Part StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown700V
TopologyFlyback
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)-
Duty Cycle78%
Frequency - Switching66kHz, 132kHz
Power (Watts)43 W
Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage
Control Features-
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case7-SIP, 6 Leads, Exposed Pad, Formed Leads
Supplier Device PackageeSIP-7C
Mounting TypeThrough Hole
Request Quote Now
Request Quote Now

We can supply TOP253EG, use the request quote form to request TOP253EG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TOP253EG. The price and lead time for TOP253EG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TOP253EG. We look forward to working with you to establish long-term relations of cooperation.
